Power the controller, switch DC loads and read industrial field signals with compact boards designed for Arduino, ESP32, Raspberry Pi, STM32, PLC and custom automation projects.
One wiring language. Three jobs. Clear PCB labels, screw-terminal field wiring, published ratings and complete documentation.
Bring in a 24 V-class DC supply and provide regulated power to the controller and accessories.

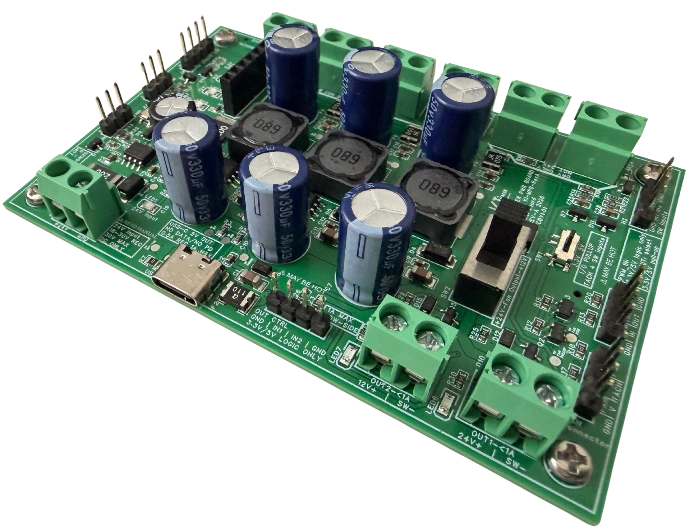

18–30 VDC input with regulated 12 V, 5 V and 3.3 V rails, plus fused input-voltage distribution.
Control compatible 12 V and 24 V DC loads such as relays, solenoids and LED lighting.

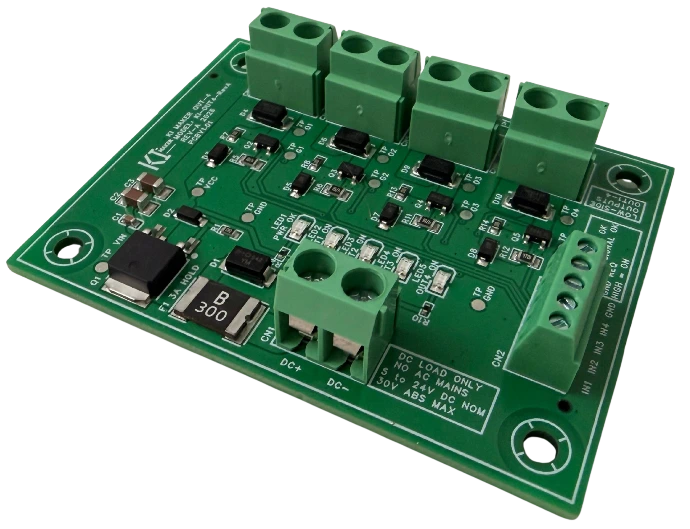

Four protected low-side MOSFET outputs for compatible 12 V and 24 V DC loads.
Bring 12 V and 24 V DC field signals safely into 3.3 V or 5 V controller logic.

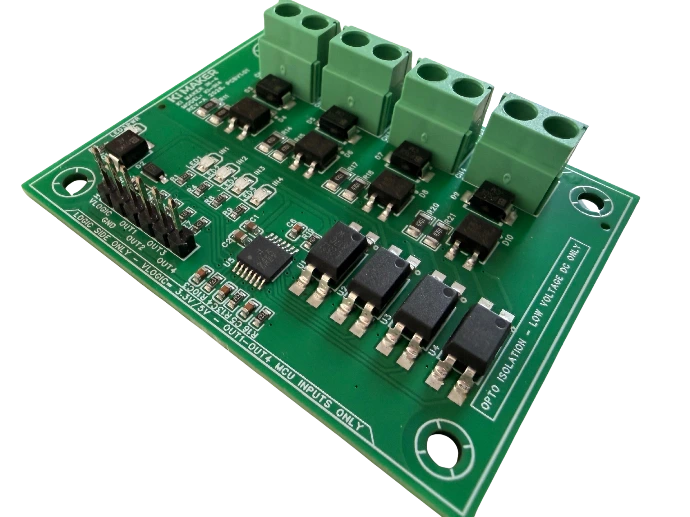

Four polarity-independent 9–30 VDC field inputs with active-high 3.3 V or 5 V logic outputs.
Each module can be used independently or combined with the other KI Maker boards. Review the product page and documentation before applying power.
| Board | Job | Electrical interface | Documentation |
|---|---|---|---|
| PWR INTF | Power the controller and accessories | 18–30 VDC input; regulated 12 V, 5 V and 3.3 V rails | Published |
| OUT-4 | Switch compatible DC loads | Four low-side outputs; 1.0 A individual-channel maximum; 3.0 A shared limit | Published |
| IN-4 | Read industrial DC field signals | Four polarity-independent 9–30 VDC inputs; 3.3 V or 5 V logic | Published |
Operating note: All boards are for low-voltage DC use within their published ratings. IN-4 provides functional isolation only and is not a safety-rated barrier. None of these products is intended for AC mains, emergency-stop, SIL or PL safety functions.
